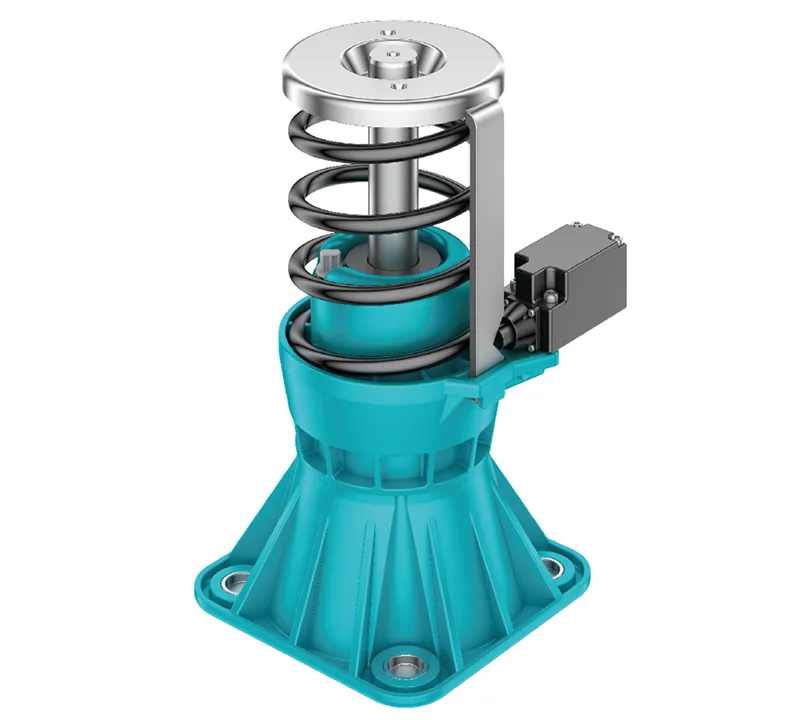

LKB Series
A new generation of buffers designed to reduce carbon impact while maintaining full compatibility with existing elevator systems.
The Next Generation of Sustainable Safety: The LKB Series
The LKB Series represents the bold evolution of our industry-leading LSB range. Engineered for the future, the LKB provides the same world-class safety performance you trust, but with a significantly reduced environmental footprint. By combining fibre-reinforced polymer construction with a forward-thinking approach to energy absorption, the LKB is designed for the buildings of tomorrow – today.
Why the LKB Series is the Future of Vertical Transport:
-
Eco-Conscious Engineering: Achieve your sustainability targets with a solution that boasts 20% lower carbon emissions compared to traditional buffers. By reducing steel usage and eliminating the need for welding or painting, we’ve created our most environmentally friendly buffer yet.
-
Seamless Interchangeability: Innovation doesn’t have to mean complexity. The LKB is designed for direct “plug-and-play” replacement with the LSB range. With identical installation dimensions and force paths, you can upgrade to green technology with zero redesign costs.
-
Prepared for Future Regulations: Stay ahead of the curve. The LKB supports the transition toward water-based energy absorption, reducing reliance on hydraulic oils and ensuring compliance with the strictest upcoming environmental standards.
-
Smarter Materials, Superior Strength: Utilising advanced fiber-reinforced polymers, the LKB maintains total structural integrity while offering the lowest possible compressed height and a completely maintenance-free lifespan.
Global Compliance as Standard: The LKB series is globally certified (EN81-20/50, GB7588, EAC, KC, CSA, CE) and fully compliant with Lift Directive 2014/33/EU, ensuring your project meets every international safety and environmental benchmark.
The LKB Series: Lower carbon, smarter materials, and uncompromising safety for a sustainable world.
- Quick & Easy installation
- Energy dissipation buffer
- Minimum G-force experience (increased passenger protection)
- Lowest possible compressed height for specified mass range
- Globally certified to EN81-20/50, GB7588, EAC,KC
- Fully compliant with lift directive 2014/33/EU
- Wide mass range 380-3250 Kg
- Self contained, maintenance free (except statutory inspections) unit
- Light weight
- Lower carbon
- Design for water-based operation
- Reliable local supply
- Mechanical spring return
Application
Model & Parameter
| Model | LKB 10 | LKB 12 | LKB 16 | LKB 18 |
| Stroke’S’ (min) mm | 73 | 108 | 173 | 219 |
| Height ‘H’ max (Extended) ** mm | 222 | 307 | 481 | 576 |
| Height ‘C’ main (Compressed) ** mm | 146 | 196 | 307 | 353 |
| Weight no oil (dry) kg | 2.884 | 3.53 | 5.25 | 5.98 |
| Oil Volume litres | 0.26 | 0.41 | 0.53 | 0.7 |
| Rated Speed m/s | 1 | 1.25 | 1.6 | 1.8 |
| Impact mass Range kg | 380-3250 | 900-3250 | 900-3250 | 900-3250 |
** The max and min figures provided take account of the extremes of the tolerance to provide absolute maximum and absolute minimum dimensions
